Product Overview

The Smart PDLC Glass Series from Westglass is a high-tech laminated glass leveraging Polymer Dispersed Liquid Crystal (PDLC) technology, enabling millisecond-level switching between transparent and frosted states via electric field control. Sandwiching a PDLC film between two glass layers and bonding them under high temperature and pressure, it integrates safety, privacy, and smart interactivity. Ideal for architectural curtain walls, automotive sunroofs, medical partitions, and more, it redefines spatial functionality through dynamic light management.

Working Principle

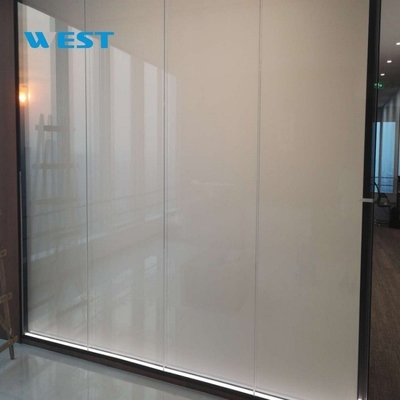

• Unpowered Frosted State: Liquid crystal molecules scatter randomly, creating a milky privacy barrier with ≤15% light transmittance—allowing light but blocking clear visibility.

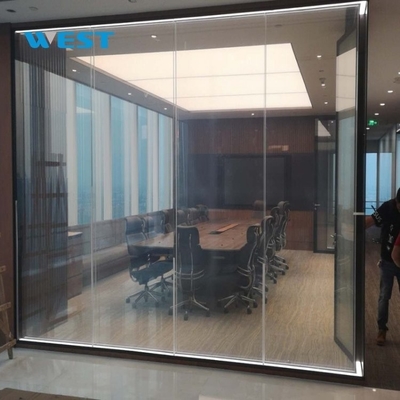

• Powered Transparent State: An electric field aligns molecules uniformly, restoring ≥80% transmittance for unobstructed views.

Why Choose Westglass?

1.      Industry Leadership & Technical Excellence

• 8 Years of Expertise:
  • Specialized in PDLC Film/Glass production and sales, delivering professional technical support and customized solutions.
• Rigorous Quality Control:
  • 100% roll material inspection to eliminate bubbles, scratches, and conductive layer defects.
• Full Customization:
  •  Laser-cut irregular sheets, electrode-equipped specifications, and roll materials (1.52m×15m/30m/60m/100m).

2.      Advanced Manufacturing & Rapid Response

• Expedited Delivery:
  • Smart Films: Custom sizes ship in 3 business days; standard sizes in 1 business day.
  • Smart Glass: Production and delivery within 15 business days, with global logistics support.

Core Functions & Advantages

1.      Instant Privacy with Millisecond Control

• One-Touch Switching: Remote/APP-controlled transparent/frosted states replace traditional curtains, saving space and enhancing modern aesthetics.
• Ultra-Fast Response (≤200ms): Meets immediate privacy needs in conference rooms and medical clinics, eliminating delays common in mechanical dimming systems.

2.      Enhanced Safety Protection

• PVB Laminated Explosion Resistance: ≥95% fragment adhesion upon breakage, compliant with international safety standards.
• Impact Resistance: Withstands 9mm steel ball impact from 1m height, suitable for high-security environments like banks and jewelry stores.
• Full-Spectrum Protection:
  • ≥99% UV blocking to protect furniture and art from fading.
  • ≥70% infrared blocking to reduce heat radiation and cut summer AC energy use by 25%.

3.      Multi-Functional Interactivity

• HD Projection Compatibility: Frosted state supports rear projection with ≤15% brightness loss—perfect for home theaters and commercial exhibitions.
• Noise Reduction: Laminated structure dampens ambient noise, creating quiet 办公 (office) and living environments.

4.      Energy Efficiency & Longevity

• Ultra-Low Power: Average 5W/m² consumption for 24/7 operation.
• Extreme Environment Resistance: Operates at -20°C~80°C with a ≥10-year lifespan.
• 2-Year Warranty: Free replacement for defects in materials or craftsmanship.

5.      Smart Ecosystem Integration

• Multi-Contol Linkage: Works with remotes, voice commands, manual switches, and smart home/building systems.
• Scene Presets: One-touch modes (e.g., "Meeting Transparent," "Movie Frosted") for efficient space management.

6.      Full-Dimension Customization

• Substrate Options: Float glass, ultra-clear glass, Low-E glass (5.5mm~40.5mm thickness).

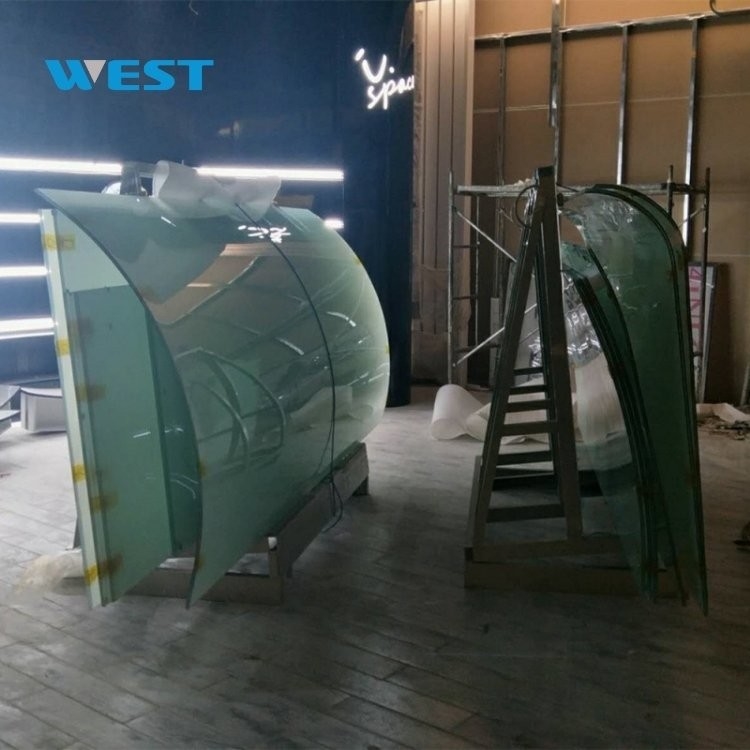

• Processing Capabilities: Drilling, edge grinding, curved bending (radius ≥300mm) for irregular designs.
• Aesthetic Choices: Frosted tones in gray, blue, black, and more to match design preferences.

Application Scenarios

Service Commitment

1.      Custom Design: Precise customization for size, transmittance, and electrode placement—solutions provided within 24 hours.

2.      End-to-End Support: Professional team for measurement, installation, and system debugging via one-stop online service.

3.      Warranty & Support: Free replacement for defective products during 2-year warranty; lifetime technical consultation.

Get Your Custom Quote Today!

Transform your space with Smart PDLC Glass—contact us for personalized solutions and innovative light control.

Technical Parameters
