Shandong West Glass Products Co., Ltd.
|
| Brand Name: | west |
| Model Number: | Black |
| MOQ: | 1 ㎡ |
| Price: | $37~75 / ㎡ |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10000 ㎡ / Month |

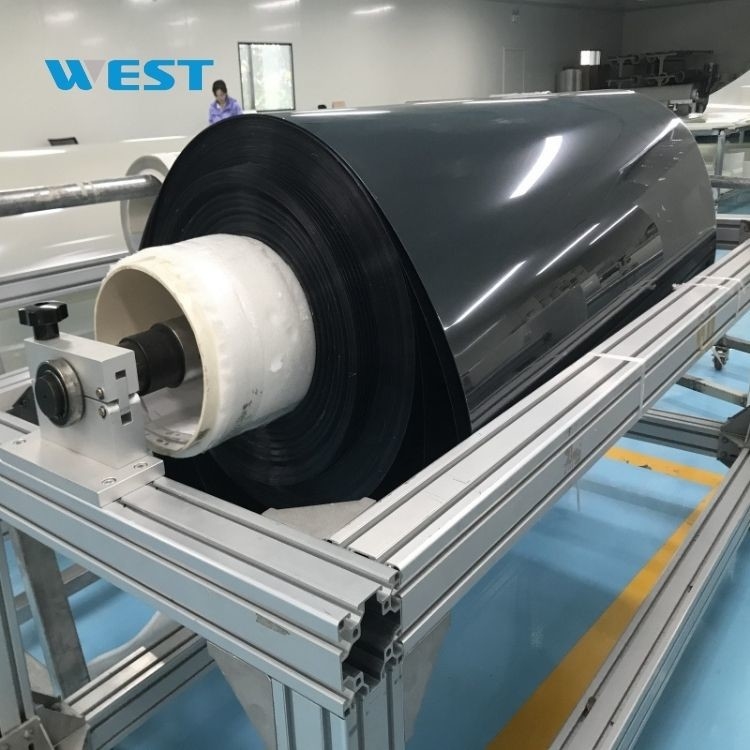

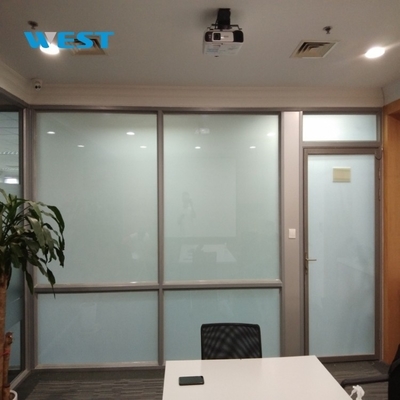

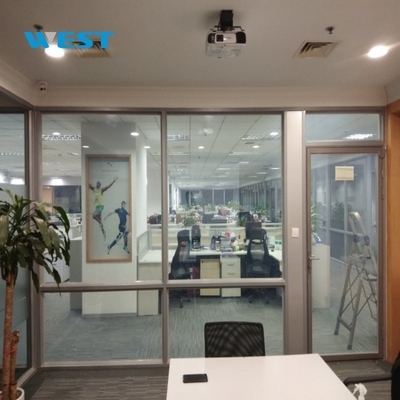

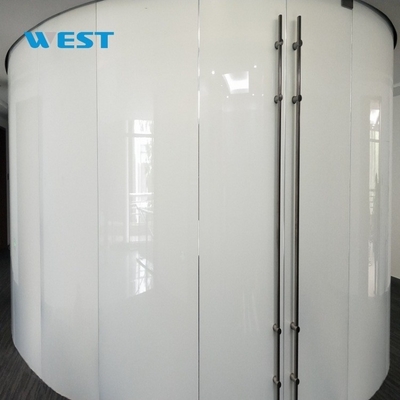

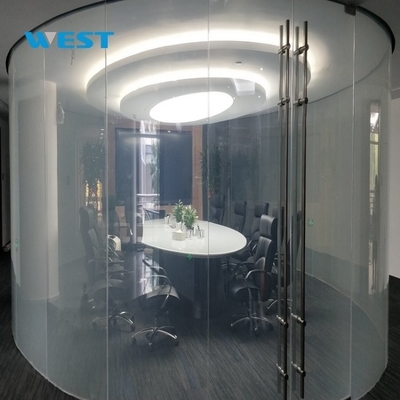

The Westglass Black Smart PDLC Film leverages polymer-dispersed liquid crystal (PDLC) technology to enable instant switching between clear and frosted states via electric field control. Its unique deep-black frosting effect and self-adhesive design transform ordinary glass into smart dimming glass with zero complex installation. Integrating privacy protection, energy efficiency, explosion-proof safety, and projection functionality, it suits architectural curtain walls, car sunroofs, commercial showrooms, and more.
|
Category |
Typical Applications |
Core Value |
|
Commercial |
Luxury brand windows, bank privacy glass, corporate showrooms |
Privacy protection with premium aesthetics |
|
Residential |
Bathroom partitions, panoramic sunroofs, smart home control panels |
One-touch frosting to replace curtains |
|
Transportation |
EV panoramic sunroofs, yacht windows, high-speed rail privacy glass |
Zoned dimming + lightweight design |
|
Public Facilities |
Hospital clinic partitions, museum display cases, airport signage |
Explosion-proof safety + functional design |
Contact us today for custom solutions and global delivery!
|
WEST Smart Film Series Same Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
Viewing Angle |
On |
° |
/ |
＞140 |
|
Electrical performance
|
Operate Voltage |
On |
AC/V |
/ |
48～65(50/60HZ) |
|
Response Time |
On→Off |
ms |
/ |
≤200 |
|
|
Off→On |
ms |
/ |
≤10 |
||
|
Power Consumption |
On |
W/m2 |
/ |
＜5.0 |
|
|
Heat shrinkage |
TD |
/ |
% |
/ |
≤0.1 |
|
MD |
/ |
% |
/ |
≤0.4 |
|
|
UV Rejection |
On/Off |
% |
/ |
≥99 |
|
|
Color Difference △E(reflection) |
Off |
CIELAB |
/ |
≤2.5 |
|
|
Working Temperature |
/ |
℃ |
/ |
-20～75℃ |
|
|
Storage Temperature |
/ |
℃ |
/ |
-20～70℃ |
|
|
Storage Humidity |
/ |
% |
/ |
20～60 |
|
|
Lifespan |
On |
h |
/ |
＞80000 |
|
|
VLT 91% White Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical performance
|
VLT |
On |
% |
±1 |
90 |
|
Off |
% |
/ |
＞65 |
||
|
Haze |
On |
% |
±0.5 |
2.5 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±5 |
395 |
|
|
VLT 89% Adhesive Smart Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical performance |
VLT |
On |
% |
/ |
87 |
|
Off |
% |
/ |
72 |
||
|
Haze |
On |
% |
/ |
≤4.0 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±10 |
479 |
|
|
VLT 89% Non-Adhesive Smart Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Value |
|
|
Optical Performance
|
VLT |
On |
% |
/ |
88 |
|
Off |
% |
/ |
72 |
||
|
Haze |
On |
% |
/ |
≤3 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±3 |
394 |
|
|
Smart PNLC Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
Off |
% |
/ |
88 |
|
ON |
% |
/ |
9 |
||
|
Parallel Light Transmission |
Off |
% |
/ |
80 |
|
|
On |
% |
/ |
7 |
||
|
Haze |
Off |
% |
/ |
10 |
|
|
On |
% |
/ |
92 |
||
|
Electrical Performance |
Response Time |
On/Off |
S |
/ |
0.5 |
|
Weather Resistance Test |
/ |
Hours |
/ |
2000 |
|
|
Thickness |
/ |
μm |
±10 |
260 |
|
|
Silicon Peeling Force |
/ |
g |
/ |
10 |
|
|
VLT 83% Non-Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
On |
% |
±1 |
83 |
|
Off |
% |
/ |
＞55 |
||
|
Haze |
On |
% |
±0.5 |
4.1 |
|
|
Off |
% |
/ |
＞96 |
||
|
Electrical Performance |
Response Time |
On→Off |
ms |
/ |
≤100 |
|
Off→On |
ms |
/ |
≤10 |
||
|
Thickness |
/ |
μm |
±5 |
395 |
|
|
VLT 83% White Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
On |
% |
±1 |
83 |
|
Off |
% |
/ |
＞55 |
||
|
Haze |
On |
% |
±0.5 |
4.3 |
|
|
Off |
% |
/ |
＞96 |
||
|
Electrical performance
|
Operate Voltage |
On |
AC/V |
/ |
48～65(50/60HZ) |
|
Response Time |
On→Off |
ms |
/ |
≤100 |
|
|
Off→On |
ms |
/ |
≤10 |
||
|
Shrinkage |
TD |
/ |
% |
/ |
≤0.2 |
|
MD |
/ |
% |
/ |
≤0.9 |
|
|
Thickness |
/ |
μm |
±5 |
560 |
|
|
Scratch Resistance |
/ |
H |
/ |
3.0 |
|
|
Silicone Layer Peel Strength |
/ |
g |
±2 |
10 |
|
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES, and more.
Westglass specializes in manufacturing and exporting automotive paint protection film (PPF), smart films, intelligent glass, photochromic films, automotive window films, and related products. Our solutions are exported to 50+ countries renowned for superior quality, competitive pricing, and exceptional after-sales service.
Let us be your trusted partner in smart glazing and protective film solutions!
Connect with us today for tailored solutions and global logistics support!
