Shandong West Glass Products Co., Ltd.
|
| Brand Name: | west |
| Model Number: | PNLC Film |
| MOQ: | 1 ㎡ |
| Price: | $480/㎡ |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10000 ㎡ / Month |

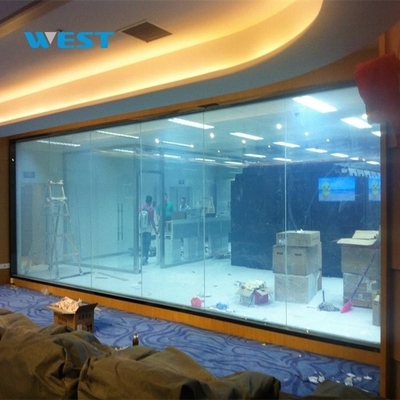

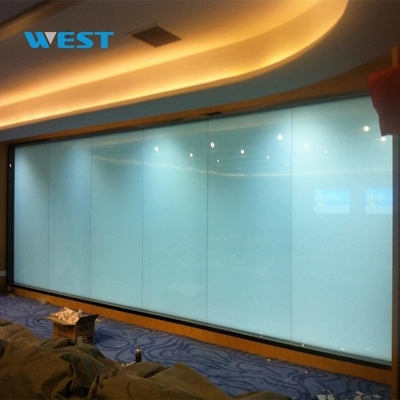

The Westglass PNLC Reverse Smart Dimming Film (Reverse PDLC Film) achieves intelligent switching between "transparent when power off" and "frosted when power on" through electric field control of liquid crystal molecular alignment, offering an inverse operation compared to traditional PDLC films (frosted when power off, transparent when power on).
With self-adhesive installation, it directly adheres to existing glass surfaces without requiring glass replacement, providing a more cost-effective solution than direct glass replacement while ensuring convenient transportation.

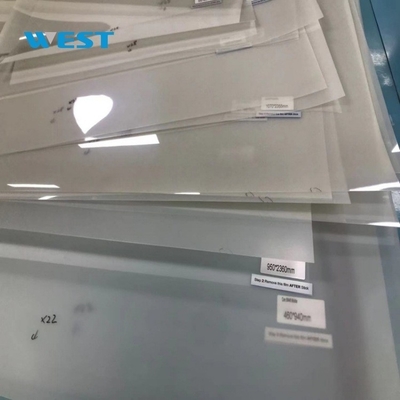

o Electrode-integrated sheets (simply provide window dimensions)

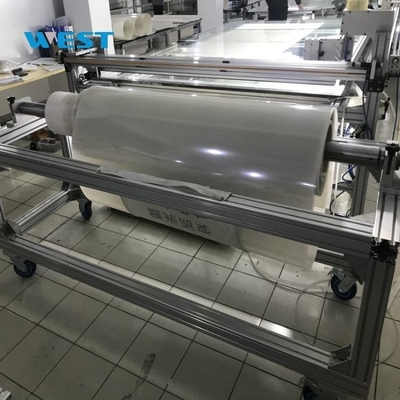

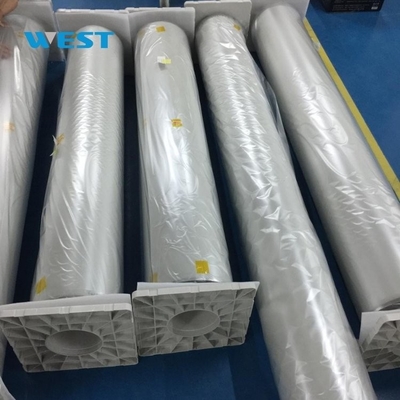

o Roll materials (1.2/1.45x30/50m)
o Laser-cut special-shaped sheets (circular, curved, etc.)
|
WEST Smart Film Series Same Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
Viewing Angle |
On |
° |
/ |
＞140 |
|
Electrical performance
|
Operate Voltage |
On |
AC/V |
/ |
48～65(50/60HZ) |
|
Response Time |
On→Off |
ms |
/ |
≤200 |
|
|
Off→On |
ms |
/ |
≤10 |
||
|
Power Consumption |
On |
W/m2 |
/ |
＜5.0 |
|
|
Heat shrinkage |
TD |
/ |
% |
/ |
≤0.1 |
|
MD |
/ |
% |
/ |
≤0.4 |
|
|
UV Rejection |
On/Off |
% |
/ |
≥99 |
|
|
Color Difference △E(reflection) |
Off |
CIELAB |
/ |
≤2.5 |
|
|
Working Temperature |
/ |
℃ |
/ |
-20～75℃ |
|
|
Storage Temperature |
/ |
℃ |
/ |
-20～70℃ |
|
|
Storage Humidity |
/ |
% |
/ |
20～60 |
|
|
Lifespan |
On |
h |
/ |
＞80000 |
|
|
VLT 91% White Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical performance
|
VLT |
On |
% |
±1 |
90 |
|
Off |
% |
/ |
＞65 |
||
|
Haze |
On |
% |
±0.5 |
2.5 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±5 |
395 |
|
|
VLT 89% Adhesive Smart Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical performance |
VLT |
On |
% |
/ |
87 |
|
Off |
% |
/ |
72 |
||
|
Haze |
On |
% |
/ |
≤4.0 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±10 |
479 |
|
|
VLT 89% Non-Adhesive Smart Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Value |
|
|
Optical Performance
|
VLT |
On |
% |
/ |
88 |
|
Off |
% |
/ |
72 |
||
|
Haze |
On |
% |
/ |
≤3 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±3 |
394 |
|
|
Smart PNLC Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
Off |
% |
/ |
88 |
|
ON |
% |
/ |
9 |
||
|
Parallel Light Transmission |
Off |
% |
/ |
80 |
|
|
On |
% |
/ |
7 |
||
|
Haze |
Off |
% |
/ |
10 |
|
|
On |
% |
/ |
92 |
||
|
Electrical Performance |
Response Time |
On/Off |
S |
/ |
0.5 |
|
Weather Resistance Test |
/ |
Hours |
/ |
2000 |
|
|
Thickness |
/ |
μm |
±10 |
260 |
|
|
Silicon Peeling Force |
/ |
g |
/ |
10 |
|
|
VLT 83% Non-Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
On |
% |
±1 |
83 |
|
Off |
% |
/ |
＞55 |
||
|
Haze |
On |
% |
±0.5 |
4.1 |
|
|
Off |
% |
/ |
＞96 |
||
|
Electrical Performance |
Response Time |
On→Off |
ms |
/ |
≤100 |
|
Off→On |
ms |
/ |
≤10 |
||
|
Thickness |
/ |
μm |
±5 |
395 |
|
|
VLT 83% White Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
On |
% |
±1 |
83 |
|
Off |
% |
/ |
＞55 |
||
|
Haze |
On |
% |
±0.5 |
4.3 |
|
|
Off |
% |
/ |
＞96 |
||
|
Electrical performance
|
Operate Voltage |
On |
AC/V |
/ |
48～65(50/60HZ) |
|
Response Time |
On→Off |
ms |
/ |
≤100 |
|
|
Off→On |
ms |
/ |
≤10 |
||
|
Shrinkage |
TD |
/ |
% |
/ |
≤0.2 |
|
MD |
/ |
% |
/ |
≤0.9 |
|
|
Thickness |
/ |
μm |
±5 |
560 |
|
|
Scratch Resistance |
/ |
H |
/ |
3.0 |
|
|
Silicone Layer Peel Strength |
/ |
g |
±2 |
10 |
|
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES, and more.
Westglass specializes in manufacturing and exporting automotive paint protection film (PPF), smart films, intelligent glass, photochromic films, automotive window films, and related products. Our solutions are exported to 50+ countries renowned for superior quality, competitive pricing, and exceptional after-sales service.
Let us be your trusted partner in smart glazing and protective film solutions!
Connect with us today for tailored solutions and global logistics support!
