Optical Principle

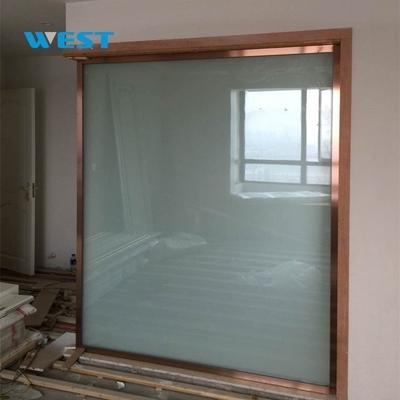

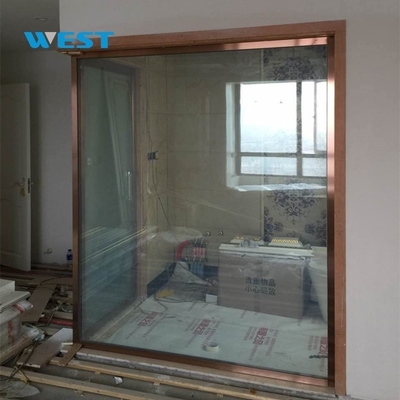

The innovative Westglass PNLC Film Series (Reverse PDLC Technology) operates on a physical mechanism inverse to conventional PDLC films: it maintains high transparency at zero voltage by regulating liquid crystal molecular alignment, and triggers an optical scattering state when an electric field is applied, achieving two optical states of "transparent when power off, frosted when power on". This fundamentally reverses the operational logic of traditional PDLC films (frosted when power off/transparent when power on).

Featuring a self-adhesive patented structure, the film directly adheres to existing glass surfaces, enabling intelligent retrofits without removing original glass. Compared to replacing entire dimming glass, it saves 60%–75% on renovation costs and supports roll transportation (up to 50 meters), significantly reducing logistics costs and construction complexity. Ideal for commercial curtain walls, medical cleanrooms, high-end retail spaces, and smart home systems.

Why Choose Westglass?

1. Extensive Industry Experience

    With 8 years of manufacturing and sales expertise in Smart PDLC/PNLC Films, Westglass provides professional technical support and tailored solutions.

2. Professional Manufacturing Capability

• Quality Standards: Enforces a three-layer inspection process: 100% full roll inspection → oven baking tests → power aging verification.
• Customization:
  • Electrode-integrated sheets (custom-sized to client specifications);
  • Complex laser-precision cut special shapes;

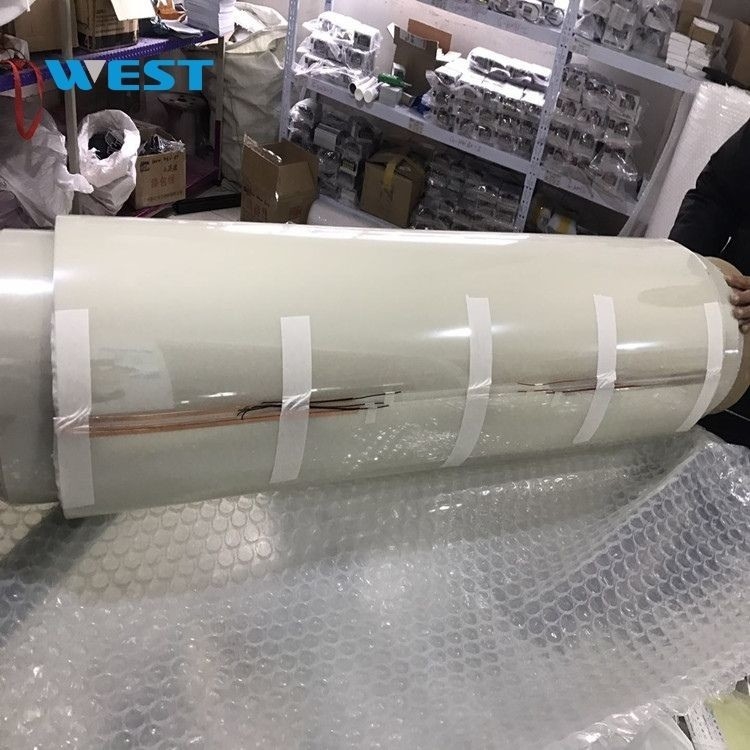

  • Industrial-grade rolls (1.2/1.45m×30/50m).

3. Expedited Delivery System

• Standard rolls shipped within 24 hours
• Custom special shapes produced and delivered in 3 business days
• Global coverage via DHL, sea freight, and local warehousing to 50+ countries.

Five Technical Advantages

1. Intelligent Energy-Saving Architecture

• Zero-Energy Transparency: Maintains glass clarity without power, reducing annual energy consumption by 50%+ compared to traditional PDLC films.
• Safe Voltage Operation: CE/ROHS certified, no electromagnetic radiation—ideal for homes, healthcare, and sensitive environments.

2. Optical Performance Breakthrough

• Light Transmittance: High visible light transmittance in power-off state.
• Frosting Response: <200ms instant switching with haze value >95%.

3. Smart IoT Ecosystem

• Multi-Mode Interaction: Supports physical switches, remote controls, mobile apps, voice commands, and smart home system integration for seamless operation.
• Projection Enhancement: Uniform scattering layer in frosted state enables HD projection, suitable for commercial digital signage and immersive exhibitions.

4. Multi-Functional Protection System

• Optical Protection: Tested data UV blocking rate 99%, IR blocking rate 63%.
• Safety Protection: Holds 98%+ of shattered glass fragments, enhancing impact resistance by 300%.

5. Easy Installation & Flexible Upgrades

• Self-Adhesive Lightweight Retrofit: Direct application to existing glass, no structural removal—saves renovation costs.
• Curved Surface Technology: Minimum bending radius 300mm, ideal for car sunroofs and curved curtain walls.
• Plug-and-Play: DIY installation without professional tools—upgrade old glass in 1 hour.

Full-Scenario Solutions

Technical Parameters
